2x1 ceiling menu board mount (49.2" rail, 59.05" pole), tilting angle. Max load per display: 55lb

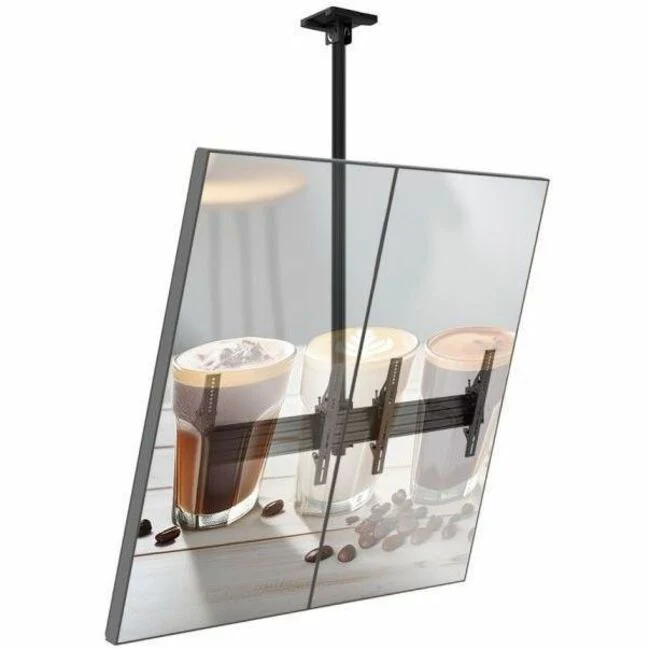

The ADBS-2X1-12TC is a pre-configured mounting solution for digital menu boards. The mounting brackets support displays up to 55lb and are attached to a 49.2" horizontal mounting rail, with the added convenience of tilting mechanism.

• Max weight per screen: 55lb
• Landscape or portrait orientation
• Universal VESA: up to 400mm
• Horizontal mounting rail: 49.2"
• Pole: 59.05"
• Material: Aluminum/Steel
• Warranty: 10 years

The ADBS-2X1-12TC solution is part of the Atdec Digital Signage modular family and consists of the following individual components:

• 1 x ADB-R125-S 49.2" Mounting Rail
• 1 x ADB-PC Pole to Ceiling or Floor Attachment Fixture
• 1 x ADB-P150-B 59.05" long 1.97" diameter Pole
• 1 x ADB-RPJ Rail Pole Joiner
• 2 x ADB-B400T VESA 400 Tilting Bracket (set of two)
