The Tripod B Series is a light-weight portable projection screen of the traditional tripod design. It is a dependable design that is easy to carry for portable small or large venue presentations. Its adjustable telescopic support allows variable height settings to aid in formatting the screen into a variety of aspect ratios. The MaxWhite® B front projection material has a 1.0 unity gain with a wide viewing angle.

Below are examples of aspect ratios that can be achieved by adjusting the height position on a T113SB.

60" height x 80" wide = 100" diagonal in 4:3
50" height x 80" wide = 94" diagonal in 16:10
45" height x 80" wide = 92" diagonal in 16:9
34" height x 80" wide = 87" diagonal in 2.35:1

Screen Material

• MaxWhite® B 1.0 Gain matte white front projection material
• Black backing eliminates light penetration for enhanced brightness
• Wide 180° viewing angle diffusion uniformity maintains projector light all across the surface
• Not compatible with Ultra/Short-throw Projectors
• Standard left and right black masking borders enhances perceived contrast

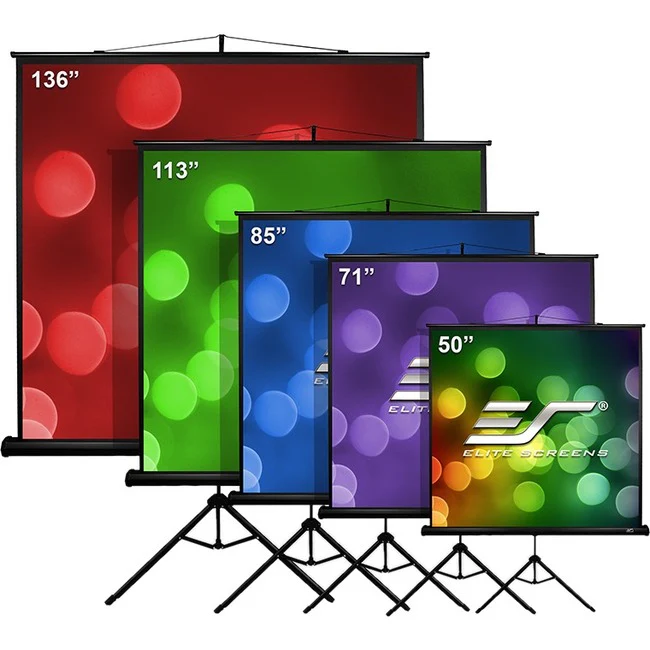

• Available in the following diagonal sizes:
  • 50" , 71" , 85" , 113" and 136" in 1:1 format

Design and Operation

• Adjustment lock secures telescopic vertical support positions
• Latch locking system allows multiple height adjustment for various aspect ratio settings
• Keystone eliminator
• Integrated handle allows screen to be easily carried
• Heavy-duty metal casing withstands rough handling while in transit
• Optional canvas bag available for added protection during transit (excludes 50" model)

Quality and Reliability

• GREENGUARD® and GREENGUARD® Gold Certified | UL 2818
• 2-Year / 3-Year ENR-G Manufacturer's Warranty by Elite Screens, an ISO9001 manufacturer since 2004
• Lifetime Tech Support by Elite's Professional Service Team through Email, Web Chat or Toll Free Phone Call
