Kramer 2x3G SDI Receiver over Ultra-Reach SM Fiber - 2 Output Device - 32808.40 ft Range - Optical Fiber
HomeStore

Kramer 2x3G SDI Receiver over Ultra-Reach SM Fiber - 2 Output Device - 32808.40 ft Range - Optical Fiber

Kramer 2x3G SDI Receiver over Ultra-Reach SM Fiber - 2 Output Device - 32808.40 ft Range - Optical Fiber

$217.16

Original: $723.88

-70%
Kramer 2x3G SDI Receiver over Ultra-Reach SM Fiber - 2 Output Device - 32808.40 ft Range - Optical Fiber—

$723.88

$217.16

The Story

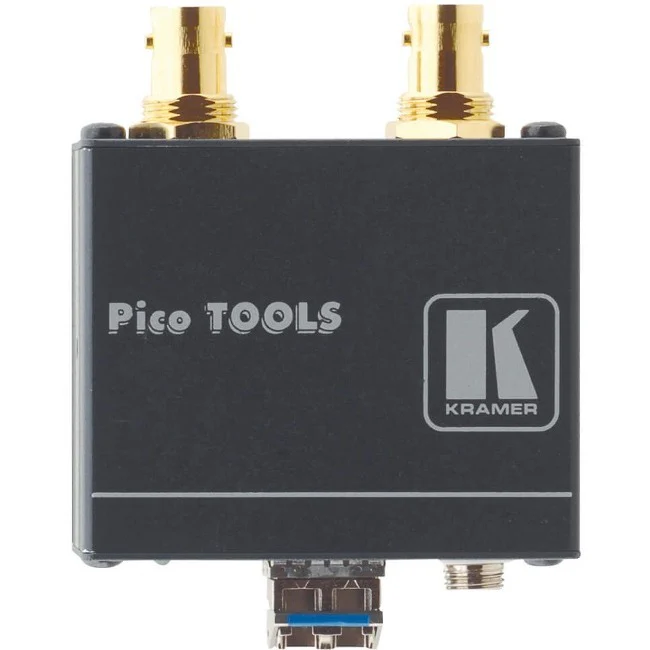

Kramer 2x3G SDI Receiver over Ultra-Reach SM Fiber

The 690R is a high-performance fiber optic receiver for SDI video signals up to 3G HD-SDI. The 690T converts two 3G HD-SDI signals to single-mode fiber optic and the 690R receiver converts them back to the two original SDI formats. Compatible with the fiber optic matrix VS-88FO.

  • Max. Data Rate - 3Gbps.
  • Inputs - 2 single-mode fiber optic on LC connectors.
  • Outputs - 2 SDI on BNC connectors.
  • HDTV Compatible.
  • Multi-Standard Operation - SDI (SMPTE 259M and SMPTE 344M), HD-SDI (SMPTE 292M), 3G HD-SDI (SMPTE 424M).
  • Laser Standards Compliance - IEC 60825-1, FDA 21CFR1040; Laser Class 1: Safety of laser products.
  • Kramer Equalization & re-Klocking™ Technology - Rebuilds the digital signal to travel longer distances on the coax cable, 200m (HD-SDI) & 100m (3G HD-SDI).
  • System Range - Up to 10km (6.2mi).

Applications

  • Home theater, presentation and multimedia applications.
  • Long range multimedia distribution for cinemas, stores, and entertainment centers.
  • Video production and broadcast facilities.
  • Retail stores and other point-of-sale systems.
  • Digital signage.

Description

Kramer 2x3G SDI Receiver over Ultra-Reach SM Fiber

The 690R is a high-performance fiber optic receiver for SDI video signals up to 3G HD-SDI. The 690T converts two 3G HD-SDI signals to single-mode fiber optic and the 690R receiver converts them back to the two original SDI formats. Compatible with the fiber optic matrix VS-88FO.

  • Max. Data Rate - 3Gbps.
  • Inputs - 2 single-mode fiber optic on LC connectors.
  • Outputs - 2 SDI on BNC connectors.
  • HDTV Compatible.
  • Multi-Standard Operation - SDI (SMPTE 259M and SMPTE 344M), HD-SDI (SMPTE 292M), 3G HD-SDI (SMPTE 424M).
  • Laser Standards Compliance - IEC 60825-1, FDA 21CFR1040; Laser Class 1: Safety of laser products.
  • Kramer Equalization & re-Klocking™ Technology - Rebuilds the digital signal to travel longer distances on the coax cable, 200m (HD-SDI) & 100m (3G HD-SDI).
  • System Range - Up to 10km (6.2mi).

Applications

  • Home theater, presentation and multimedia applications.
  • Long range multimedia distribution for cinemas, stores, and entertainment centers.
  • Video production and broadcast facilities.
  • Retail stores and other point-of-sale systems.
  • Digital signage.
