Lantronix SGPAT1013-105 Transceiver/Media Converter - 1 x Network (RJ-45) - 1x PoE+ (RJ-45) Ports - 1 x SC Ports - Multi-mode - 850 nm Fiber - Gigabit Ethernet - 10/100/1000Base-T, 1000Base-SX - 1000 Mbit/s - 1804.46 ft - AC/DC - Wall Mountable, DIN Rail

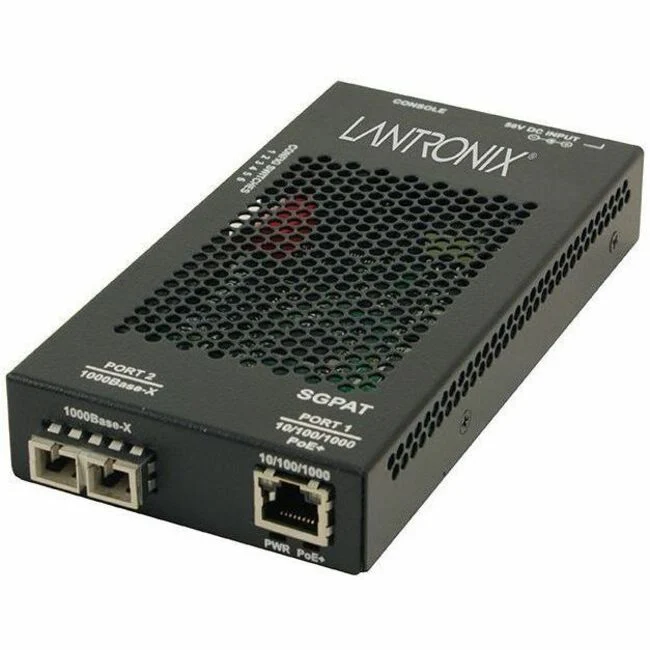

Lantronix SGPAT1013-105 Transceiver/Media Converter

Stand-alone Fast & Gigabit Ethernet PoE / PoE+ Media Converter

10/100/1000Base-T PoE+ PSE to 1000Base-X

The SGPAT Series is a 10/100/1000Base-T to 100/1000Base-SX/LX Gigabit Ethernet Media Converter, that easily and affordably facilitates the connection between different types of network cabling, while also injecting PoE power through the copper RJ-45 port.

Being a Power Sourcing Equipment (PSE) device, the SGPAT media converter combines data received over a fiber optic link with 56VDC input power to provide power and data to a Powered Device (PD) over twisted pair cabling while complying with the IEEE 802.3af PoE and IEEE 802.3at PoE+ standard.

The converter is available in 2-port, 3-port, and 4-port versions and includes PD signature sensing and power monitoring features. Other features include over-current protection, under-current protection, and fault protection input. Active Link Pass Through (ALPT) is supported, which is an automatically activated version of Link Pass Through (LPT) that allows the converter to detect the loss of Receive (Rx) signals on either fiber or copper port and propagate the failure to the end devices, preventing the media converter from isolating those link failures. During a Link Pass Through event, the Auto Power Reset feature will re-set the power to the end PD device, ensuring it is ready to go when the LPT event is corrected.
